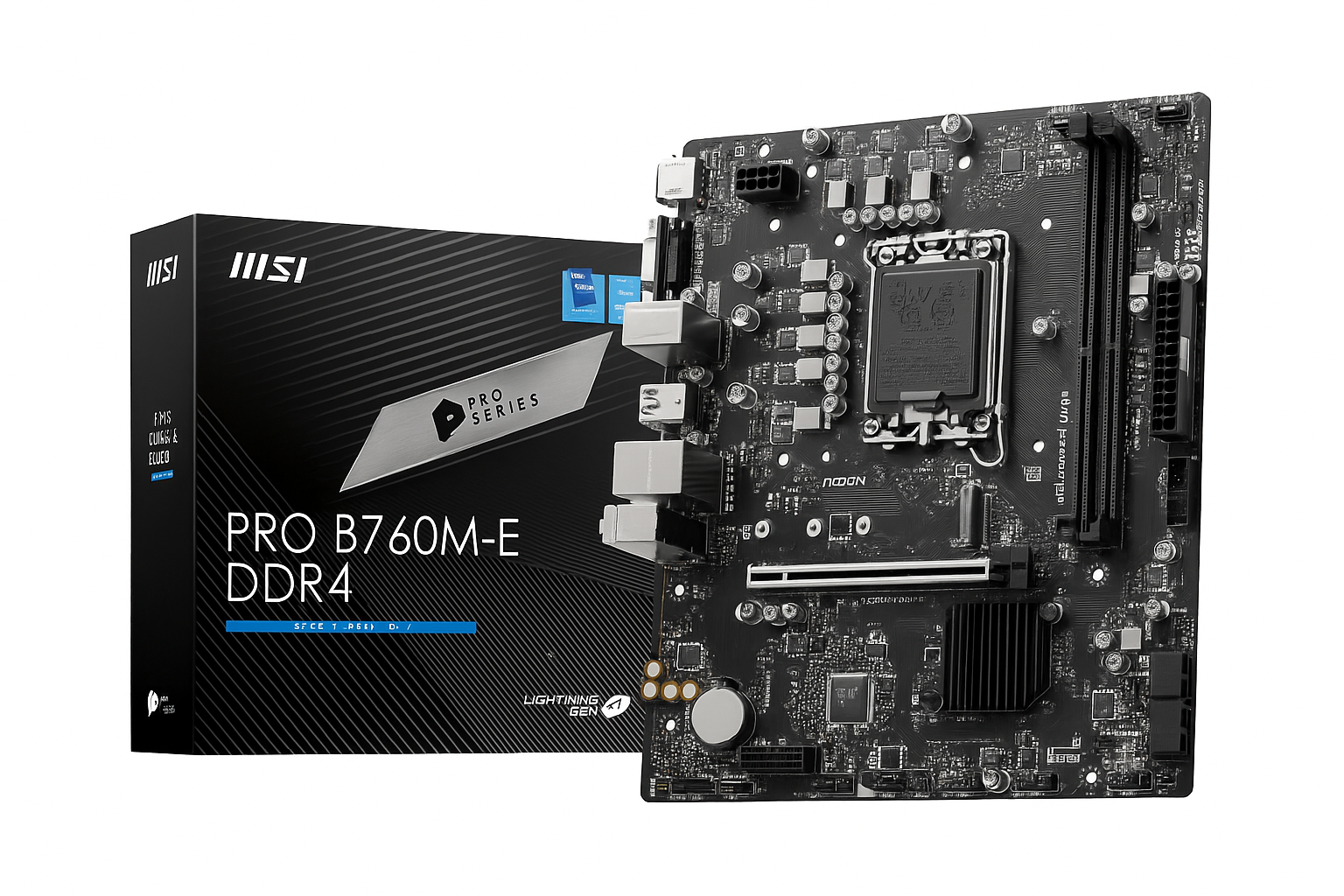

MSI PRO B760M-E DDR4 Motherboard

Features:

• Chipset: Intel® B760

• CPU Support: 12th & 13th Gen Intel® Core™, Pentium® Gold, and Celeron® processors (LGA 1700 socket)

• Memory Support:

  • 2 × DDR4 DIMM slots, up to 64 GB total capacity

  • Supports DDR4 2133 / 2400 / 2666 / 2933 / 3200 MHz (by JEDEC & XMP)

• Graphics Interface:

  • 1 × PCIe 4.0 x16 slot for discrete GPU

  • Integrated Intel® UHD Graphics support (depending on CPU)

  • Display Outputs: 1 × HDMI 2.1, 1 × DisplayPort 1.4

• Storage:

  • 2 × M.2 slots (1 × PCIe 4.0 x4, 1 × PCIe 3.0 x4/SATA)

  • 4 × SATA 6 Gb/s ports

• Expansion Slots:

  • 1 × PCIe 3.0 x1 slot

• Audio: 7.1-channel HD Audio (Realtek ALC897 codec)

• Networking:

  • 1 × Realtek® 2.5G LAN port for high-speed connectivity

• USB Ports:

  • Rear I/O: 2 × USB 3.2 Gen 1 Type-A, 4 × USB 2.0

  • Internal: Supports additional front-panel USB 3.2 Gen 1 and USB 2.0 ports

• Internal Connectors:

  • 1 × 24-pin ATX power connector

  • 1 × 8-pin CPU power connector

  • 2 × Fan headers

  • 1 × RGB header

  • 1 × Front panel connector

• Form Factor: Micro-ATX (mATX)

• Dimensions: 236 × 208 mm

• Operating System Support: Windows® 10 / 11 (64-bit)

• Color: Black / Silver

• Condition: Brand New
